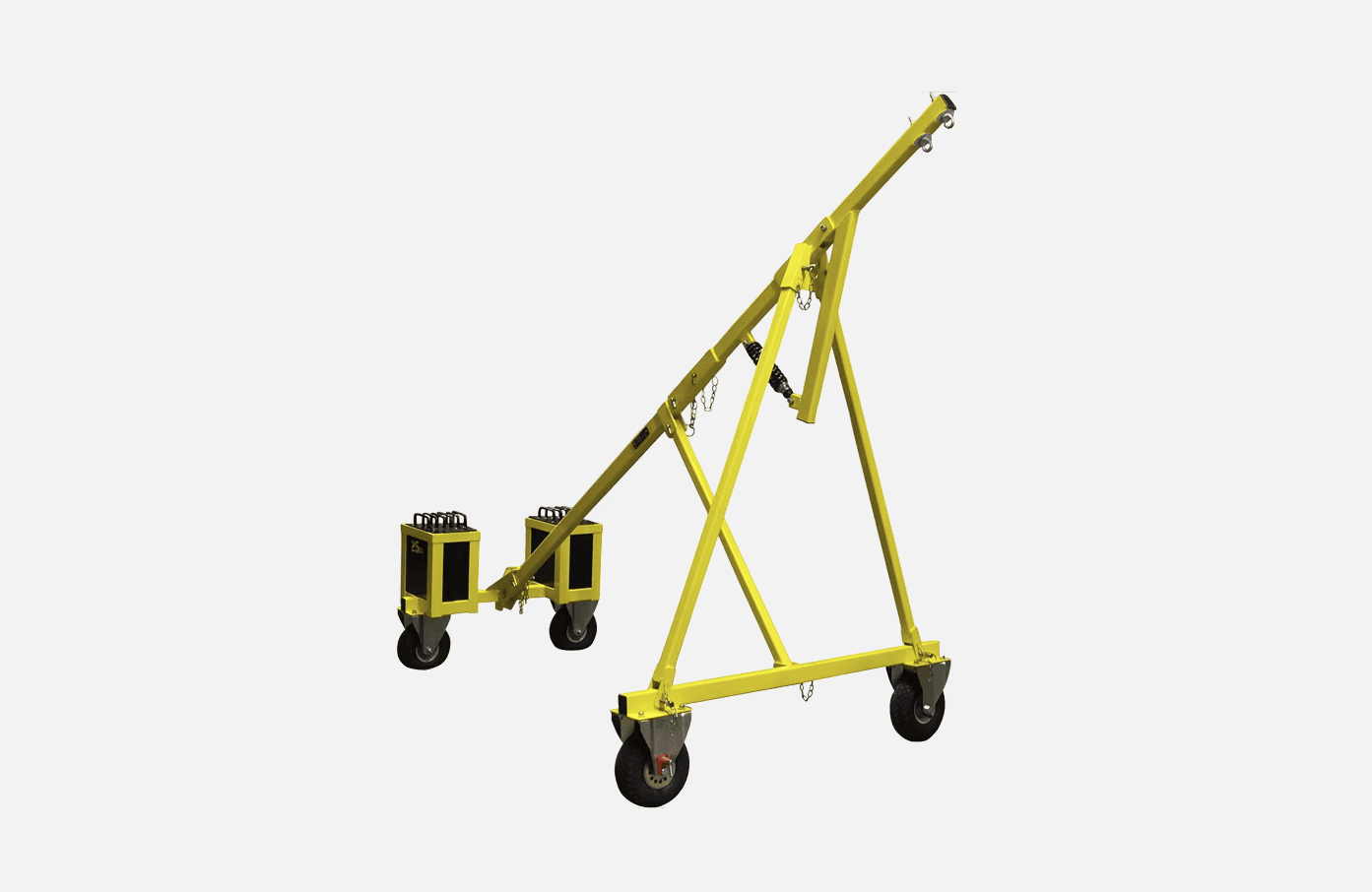

Mobile Anchorage - A-Frame
IAS-AF-01

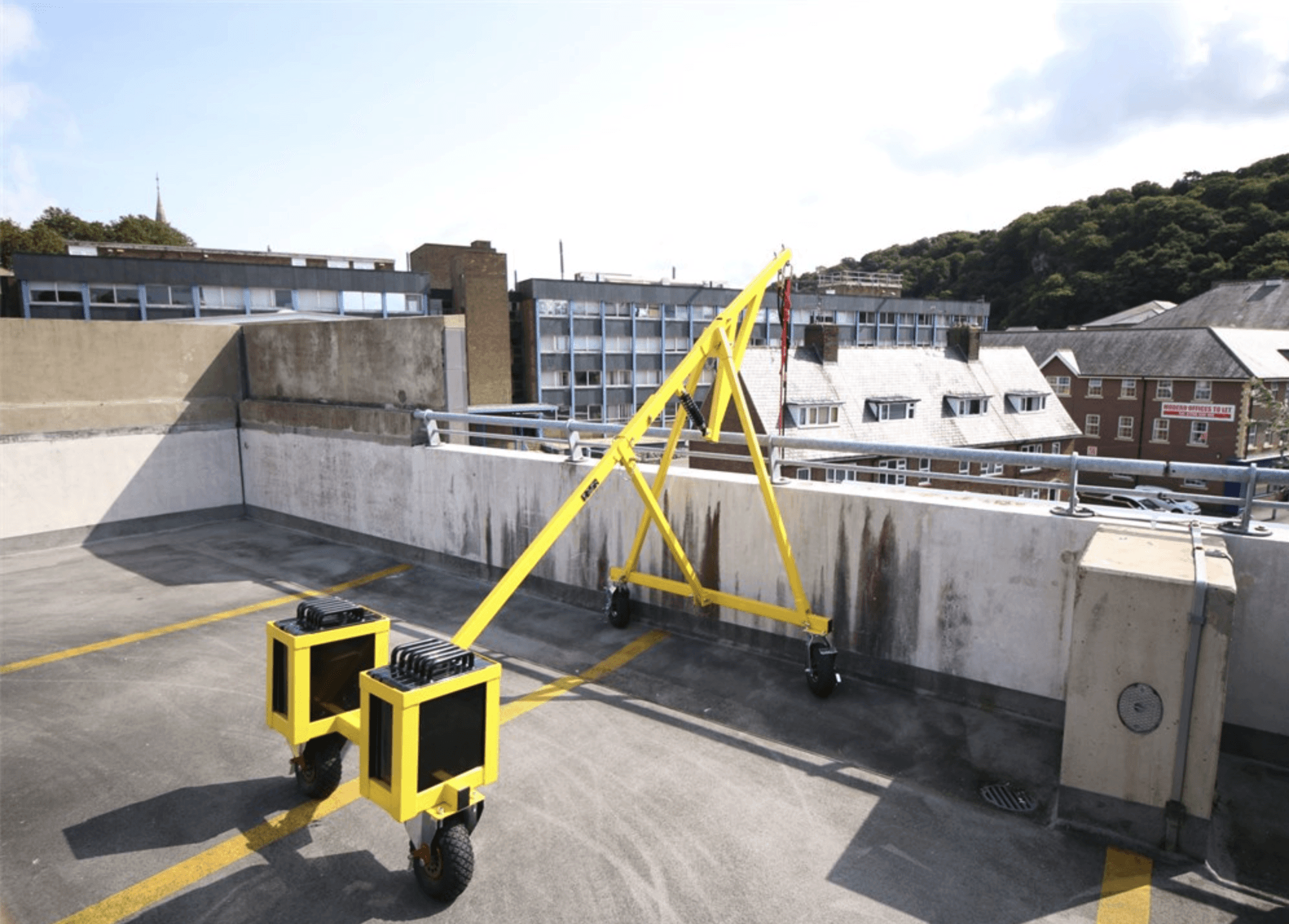

This is a mobile anchor designed for use on flat roofs, providing industry compliant portable suspension anchorage for rope access operations without the need to penetrate the roof membrane.
Product Details
This anchor system is designed to provide a reliable, freestanding anchor point without the need to penetrate any roof coverings or finishes. Stability is achieved using 12 × 25 kg weights, giving a total deployed weight of 387 kg — creating a robust counterweighted base suitable for a wide range of flat roof surfaces.
The 2,180 mm anchor point height with a beam overhang of up to 350 mm provides generous clearance for abseilers commencing descent over parapet walls and upstands ranging from 300 mm to 1,500 mm, making it well suited to the varied roof edge conditions encountered on various structures.
Compliance & Certification
CE marked to EN 795:2012 (Type E)
IRATA ICOP compliant — 15 kN static load
Two-person rescue load rated (PD CEN/TS 16415)
Features
Freestanding design — no roof penetration required
Dismantles into 7 portable sections plus 12 weight plates for transport and deployment without specialist lifting equipment
Front-mounted 360° swivel wheels with integrated locking mechanism for lateral repositioning without full disassembly
Built-in shock absorber/energy absorber
2,180mm anchor point height with up to 350 mm beam overhang
Suitable for parapet walls and upstands from 300 mm to 1,500 mm
Rated for two-person rescue load in accordance with current legislation
Specifications
Safe Working Load | 200 kg (440 lbs) |
Number of Weights | 12 × 25 kg weight |
Frame Weight | 87 kg (without weights) |
Total Weight | 387 kg (frame + weights) |
Anchor Height | 2,180 mm |
Beam Overhang | Up to 350 mm |
Min. Upstand | 300 mm |
Max. Upstand | 1,500 mm |
Standard | EN 795:2012 Type E / IRATA ICOP |
