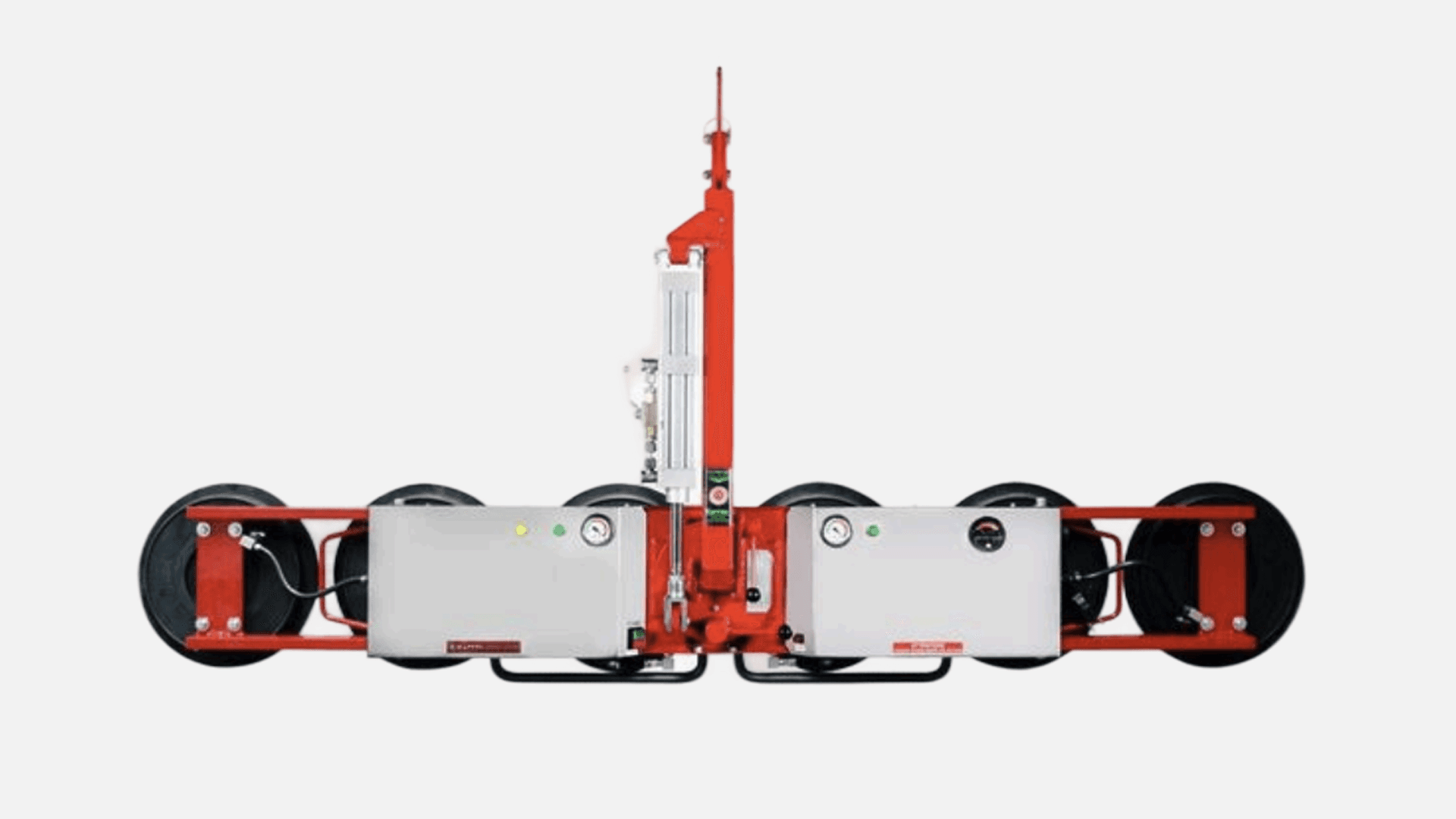

Vacuum Lifter – Kappel DSKE2 12V
IAS-DSKE2-01
The Kappel DSKE2 12V is a versatile battery-powered glass vacuum lifter configurable as a 4-cup or 6-cup unit, with a SWL of 300–450 kg, dual vacuum circuit safety system, and 360° rotation and 90° tilt.
Product Details
The DSKE2 can be set up as a four-cup unit (300 kg SWL) or a six-cup configuration with extension arms (450 kg SWL), making it adaptable to a wide range of glass panel sizes. A lightweight design of 45–55 kg (depending on configuration) reduces the load on the lifting equipment and eases transportation on its wheeled trolley stand. Safety is ensured by a dual-circuit vacuum system with two pumps and two tanks — if one circuit fails, the other maintains the load. The wired remote control includes a two-button suction release. The DSKE2 is certified to DIN EN 13155 for site use and features visual and audible low-vacuum alerts.
Features
Configurable as 4-cup (300 kg) or 6-cup with extension arms (450 kg)
Dual-circuit vacuum system with two pumps and two reserve tanks
360° rotation and 90° tilt for precise glass positioning
Lightweight: 45–55 kg depending on configuration
Visual and audible low-vacuum alert
Wired remote control with two-button suction release
Certified to DIN EN 13155 for site operation
Specifications
Safe Working Load (4 cups) | 300 kg |
Safe Working Load (6 cups) | 450 kg |
Number of Suction Cups | 4 (expandable to 6 with extension arms) |
Lifter Weight | 45–55 kg (configuration dependent) |
Rotation | 360° |
Tilt | 90° |
Power Supply | 12 V DC rechargeable battery (240 V Charger) |
Vacuum System | Dual circuit (2 pumps, 2 tanks) |
Standard | DIN EN 13155 |
