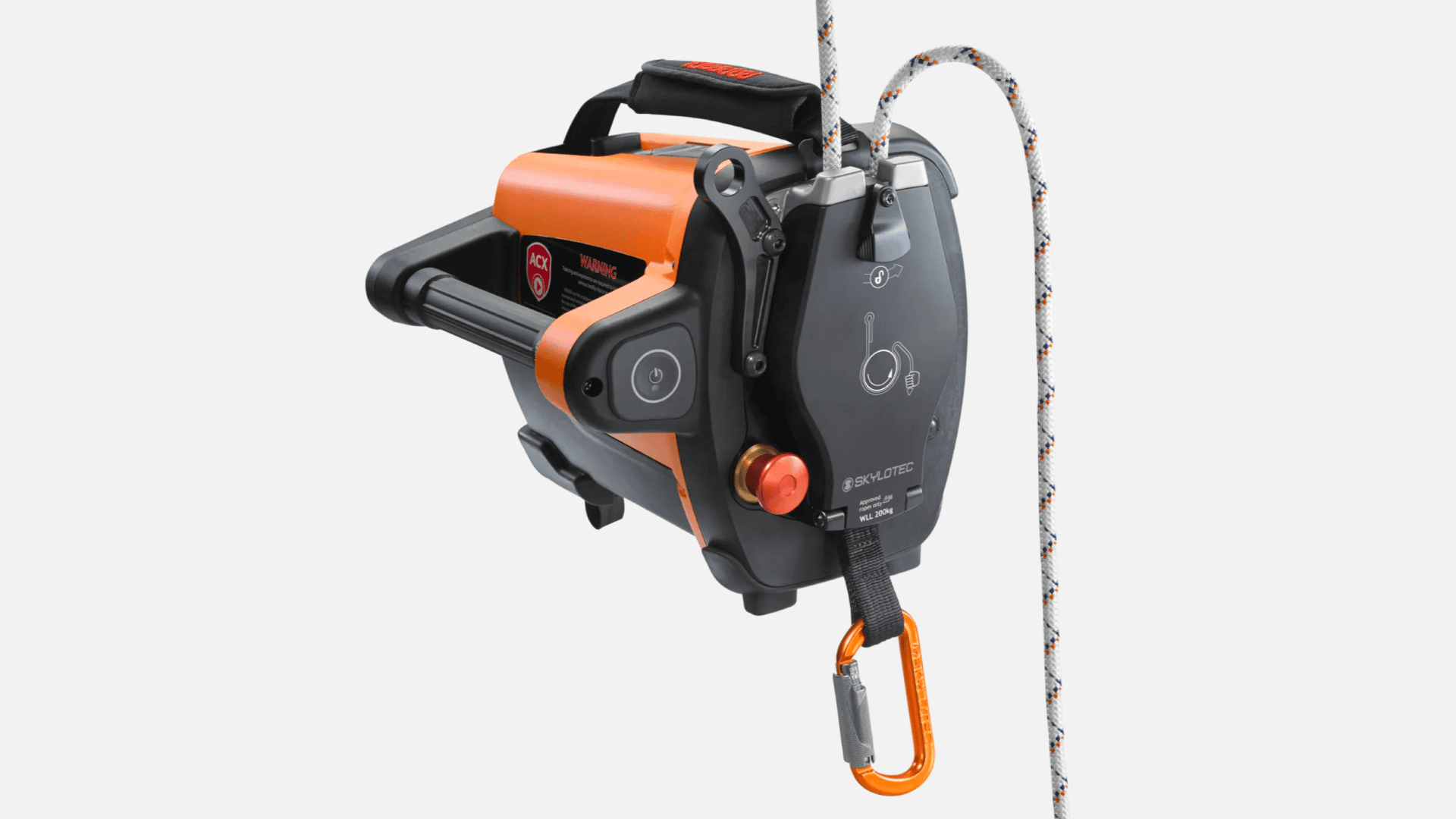

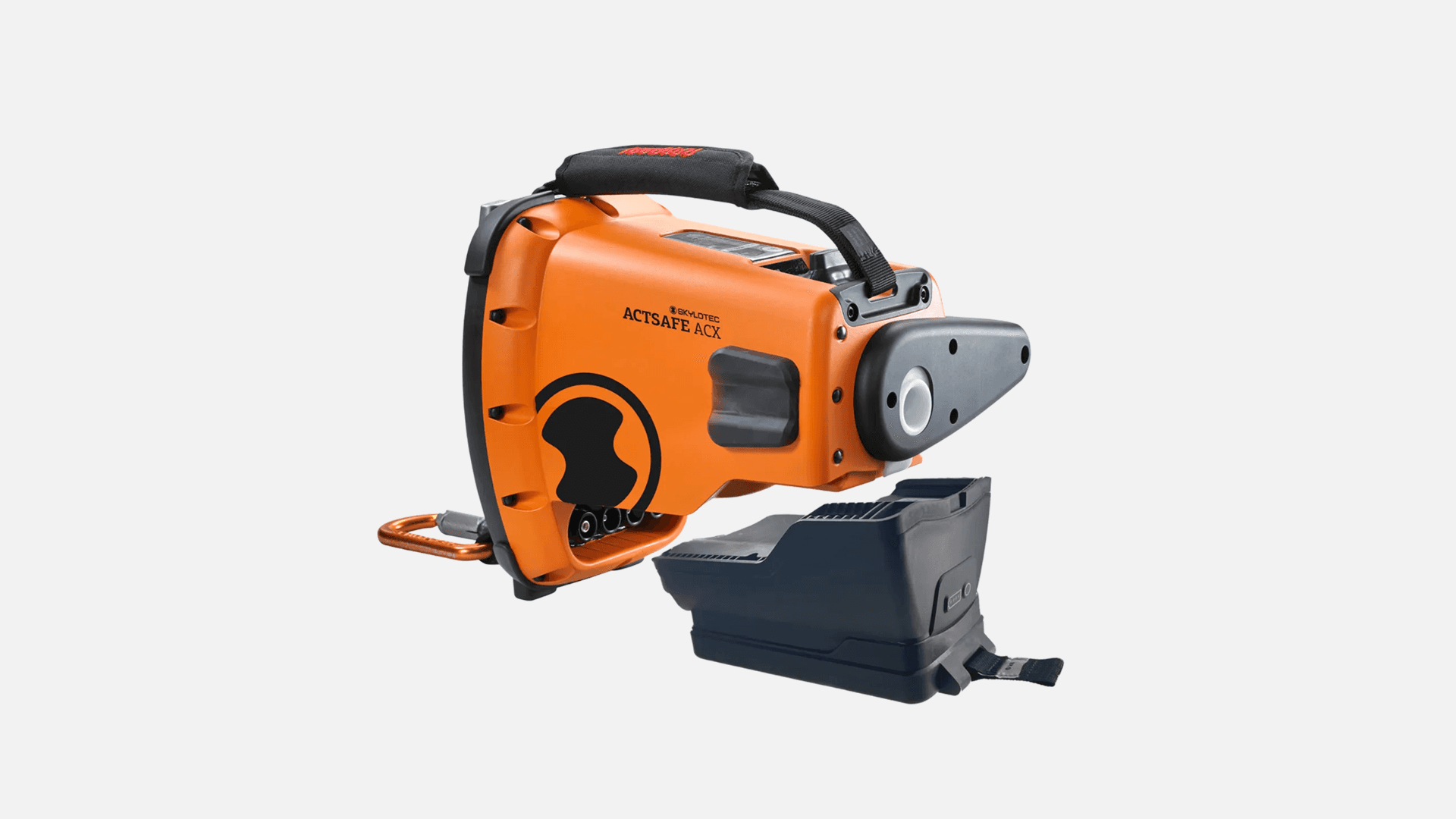

ACX Power Ascender
IAS-ACX-01
The ACX powered ascender is a professional battery-powered rope ascender for personnel and equipment lifting up to 200 kg, designed for demanding rope access operations in offshore, wind energy, and façade maintenance sectors
Product Details
The ACX offers a 200 kg SWL and variable speed from 0 to 24 m/min. Built for commercial and industrial rope access use, it features IP55 protection, a wireless remote control, and is suitable for challenging environments including offshore, wind turbines, and complex building structures. It uses a dedicated 11 mm EN 1891-A rope. The ACX can lift both personnel and heavy equipment, enabling safe and efficient access to otherwise unreachable areas and reducing reliance on expensive access platforms. Battery range is up to 200 m at 200 kg load.
Approved Equipment Lifting Rope (ELR) 11 mm available for hire.
Features
200 kg SWL for both personnel and equipment lifting
Variable speed 0–24 m/min
IP55 weather protection rating
Wireless remote control for ground operator
For use with approved 11 mm EN 1891-A rope for lifting or personnel access accordingly
Suitable for offshore, wind turbine, façade, and rescue applications
Approved under Machinery Directive 2006/42/EC
Specifications
Safe Working Load | 200 kg |
Max. Ascent Speed | 24 m/min (adjustable 0–24 m/min) |
Max. Range (200 kg load) | 200 m |
Rope Diameter | Approved 11 mm (EN 1891-A) |
IP Rating | IP55 |
Standard | Machinery Directive 2006/42/EC |
